30A PWM Solar Charge Controller Discharge Regulator 12V 24V 1920W for Lithium Batteries

Brand Name : WINXU

Model Number : SCC1

Certification : ce, RoHS

Place of Origin : Guangdong, China

MOQ : 1

Price : $2.36

Payment Terms : T/T, Western Union, D/A

Delivery Time : Negotiated by quantity

Packaging Details : Box

keywords : Solar Regulator PWM Battery Charger

IP Rating : IP65

Power Source : 12V/24V

Material : LCD display

Type : 10A 20A 30A 40A 50A 60A Solar control

Power : 10W-2000W

Color : Cool White

Contact Now

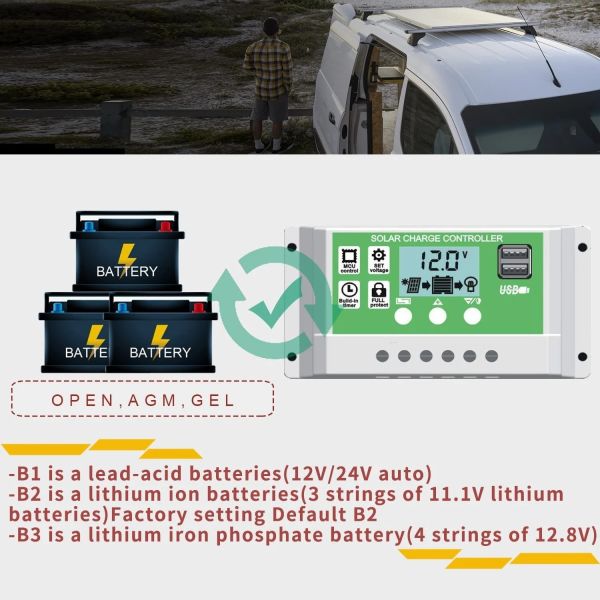

60A 50A 40A 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.

Connection:
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!



Solar Emergency Lights Parameter:

MODEL
RBL-10A
RBL-20A
RBL-30A
RBL-40A
RBL-50A
RBL-60A
Battery Voltage
12V 24V Auto
Charging Current
10A
20A
30A
40A
50A
60A
Discharging Current
10A
10A
10A
20A
30A
30A
Max Solar input
48V(for 24V battery) 24V(for 12V battery)
Equalization
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float charge
13.7V(defaul,adjustable)
Discharge stop
10.7V(defaul,adjustable)
Discharge reconnect
12.6V(defaul,adjustable)
Charge reconnect
13V
Voltage of open light
Solar Panel 8V(Light lights delay)
Voltage of close light
Solar Panel 8V(Light off delay)
USB output
5V/3A
Self-consume
<10mA
Operating temperature
-35°C~+60°C
Size
133.5*70*35mm
188*90*47mm


30A PWM Solar Charge Controller Discharge Regulator 12V 24V 1920W for Lithium Batteries30A PWM Solar Charge Controller Discharge Regulator 12V 24V 1920W for Lithium Batteries30A PWM Solar Charge Controller Discharge Regulator 12V 24V 1920W for Lithium Batteries30A PWM Solar Charge Controller Discharge Regulator 12V 24V 1920W for Lithium Batteries30A PWM Solar Charge Controller Discharge Regulator 12V 24V 1920W for Lithium Batteries











Solar Emergency Lights FAQ:

1. How to proceed an order for solar light?

Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

2. Is it OK to print my logo on solar light product?

Yes.we could print logo on some solar light. Please inform us formally before our production and confirm the design firstly based on our sample.

3. Do you offer guarantee for the products?

Yes. we offer 1 year warranty to our products.
