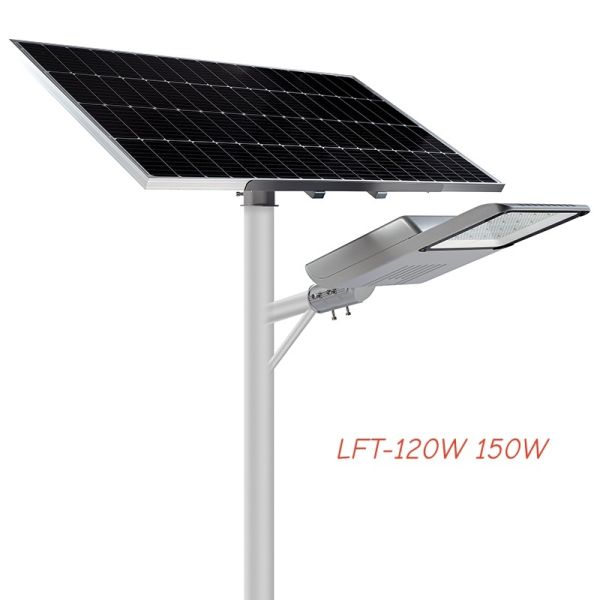

Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn for 40W 60W 80W 100W 120W
Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn, with separate solar panel, controller, battery and LED light source. It offers flexible installation, high efficiency and stable performance. The system uses high-efficiency monocrystalline solar panel and long-life LiFePO4 battery, charging automatically during the day and lighting at night. It features high brightness, low light decay, good heat dissipation, IP65 waterproof and easy maintenance. Widely used for roads, parks, communities, squares and other outdoor lighting projects.
1.Paremeter for Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn
|
MODEL
|
LFT-40W |
LFT-60W |
LFT-80W |
LFT-100W |
LFT-120W |
| Type1 |
Batery:LiFePO412.8V,30AH,384WH
Solar panels:Mono 18V/80W
Solar panel size:550*760*25
4-core high luminous efficacySMD3030,192PCS
|
Battery:LiFePO4 12.8V,45AH,576WH
Solar panels:Mono 18V/120W Solar panel size:800*760*30mm
4-core high luminous efficacy SMD3030,192PCS |
Battery:LiFePO4 M12.8V,60AH,768WH
Solar panels:Mono 18V/160W Solar panel size:1040*760*30mm
4-core high luminous efficacySMD3030,256PCS |
Battery:LiFePO4 12.8V,75AH,960WHSolar panels:Mono 18V/200W Solar panel size:1320*760*30mm
4-core high luminous efficacySMD3030,256PCS |
Battery:LiFePO4 25.6V,45AH,1152WH
Solar panels:Mono 36V/240W Solar panel size:1540*760*30mm
4-core high luminous efficacySMD3030,384PCS |
| Type2 |
Battery:LiFePO412.8V,45AH,576WH
Solar panels:Mono 18V/120W
solar panel size:
800*760*30*25
10-core high luminous efficacySMD5050,64PCS
|
Battery:LiFePO4 12.8V,60AH,768WH
Solar panels:Mono 18V/180W solar panel size:1180*760*30*25
10-core high luminous efficacySMD5050,64PCS |
Battery:LiFePO4 12.8V,75AH,960WH
Solar panels:Mono 18V/240W solar panel size:1540*760*30*25
10-core high luminous efficacySMD5050,96PCS |
Battery:LiFePO4 12.8V,90AH,1152WH
Solar panels:Mono 18V/260W solar panel size:1720*770*35*25
10-core high luminous efficacySMD5050,96PCS |
Battery:LiFePO4 12.8V,90AH,1152WH
Solar panels:Mono 36V/280W solar panel size:1720*770*35*25
10-core high luminous efficacySMD5050,128PCS |
| Light Size |
810*95*320mm |
| Lighting effects |
196.23LM/W |
193.84LM/W |
192.75LM/W |
194.16LM/W |
193.02LM/W |
| Protection grade |
IP66 |
Solar panel
conversion efficiency |
23.8% |
| Brightness |
7850LM |
11631LM |
15420LM |
19416LM |
23163LM |
| Controller |
MPPT controller |
| Light angle |
T2 / 3 / 4 / 5 / transmittance: >95% |
Cloud platform
system management |
Iot Control Management System (optional) |
| Lighting Method |
100% for the first 4 hours, 50% for the middle 2 hours, and 30% for the last 6 hours |
| Discharge time |
3-5rainy days |
| Installation Height |
6-7Meter |
7-8 meter |
8-10meter |
10-12meter |
12-15meter |
| Lamp pole sleeve interface |
65MM |
Solar panel mounting bracket (adjustable angle)
Feature for Solar Lights IP66 Split Solar Street Light Solar Street Lights Dusk To Dawn
1. The heat sink is made of ADC12 aluminum with a thickened anti-corrosion paint finish.
2. No additional wiring is required, saving costs; multiple mounting brackets are available for tubular and arm mounting.
3. Direct light emission design, high-transmittance lens with tempered glass, light transmittance over 95%, selectable beam angle, high lighting effects.
4. Uses 4-core high-brightness LEDs, high lighting effects, low light decay, and high energy efficiency.
5. High thermal conductivity aluminum substrate and heat sink, low temperature rise, good overall lamp heat dissipation, and longer lifespan.
6. Our company solemnly promises a 3-year warranty and lifetime cost-based maintenance.
7. Assembly line operation, large-scale production, stable product performance, and guaranteed quality.
